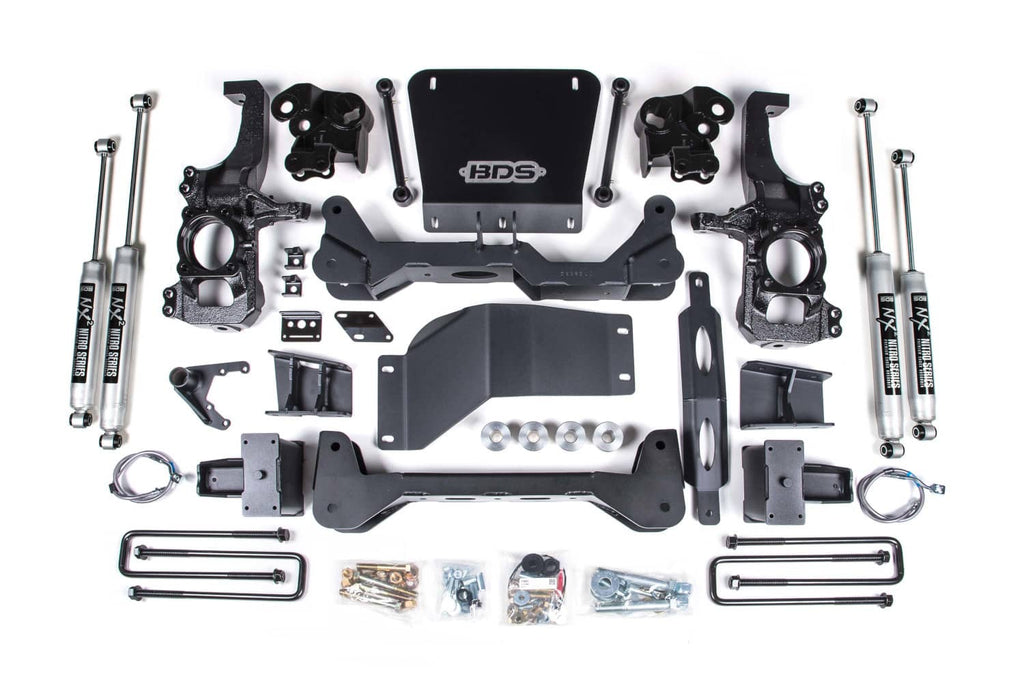

5" LIFT KIT W/ FOX 2.0 SHOCKS 20-26 GM HD W/O OVERLOADS (EXC AT4X/ZR2) - BDS766FS

BDS 5" LIFT KIT WITH FOX 2.0 PERFORMANCE SHOCKS | 20-26 SILVERADO SIERRA HD WITHOUT OVERLOADS (EXCLUDING AT4X/ZR2)

• High Clearance design w/ no torsion bar drop maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included
• Choice of NX2, FOX 2.0 or FOX 2.5 gas shocks for improved performance

Important Note: Requires frame bracket modification. Torsion Bar Tool required to load/unload torsion bars, The GM specified tool is #CH48809. Models with twopiece rear driveshafts will require a carrier bearing drop kit. Factory 17-18" wheels cannot be reinstalled due to tie rod end interference, stock 20" wheels can be reinstalled with up to a 35x12.50 tire. In some cases vehicles used in 4WD on the highway regularly could potentially experience a minor front driveline vibration. If this occurs we recommend replacing the front driveshaft with a dual Cardan style driveshaft. Some minor trimming will be required with certain wheel/tire combination. This is normal with most aftermarket tire/wheel fitment on Chevy/GM trucks. Further trimming tips are included at the end of this instruction sheet. Will NOT work with AT4X or ZR2 models, lower control arm profile is different
